| Brand Name : | hairf |
| Model Number : | HADR 0452 |
| Certification : | CE 3C RoHS ISO |
| Price : | 4999~8000USD |
| Payment Terms : | T/T |
| Supply Ability : | 600 unit/month |
| Delivery Time : | 25~35 working days |

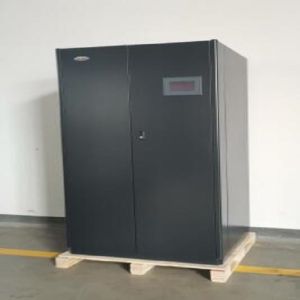

HAIRF Telecommunication air conditioning units floor standing equipment 220v/1ph/50hz
Closed Control Unit (CCU Or CRAC) precision air conditioner,server room air conditioner ,Power control center air conditioner,
datacenter room air conditioner network mangement center air conditioner ,switch control room air conditioner
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
| SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| | Compressor | |||||||||
| Type | |||||||||
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Finned coll evaporator | |||||||||
| Frontal suface | M2 | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | ||||||||
| Type of fins | |||||||||
| FIn pitch | mm | ||||||||
| Fan section | |||||||||
| Type | |||||||||
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | |||||||||
| Eficiency | |||||||||
| Overall surface | M2 | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | |||||||||
| Humidifier | |||||||||
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | |||||||||
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | |||||||||
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
| EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
| SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
| Compressor | |||||||||
| Type | Scroll | ||||||||
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| I F hned coil evaporator | |||||||||
| Frontal surface | m2 | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
| Geometry | mm | 25X21.65 | |||||||
| Type of fins | Hydrophilic | ||||||||
| Fin pich | mm | 1.8 | |||||||
| Fan section | |||||||||
| Type | Centrigugal fan | ||||||||
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
| Air flter | |||||||||
| Eficiency | EU4 | ||||||||
| Overall surface | m2 | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
| Fire resistance dass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Material | PTC | ||||||||
| Humidifier | |||||||||
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | |||||||||
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
| Sound level | |||||||||
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
|
|
