| Brand Name : | HAIRF |
| Model Number : | HAUR 0191 |
| Certification : | CE 3C RoHS ISO SASO |
| Price : | 3999~8000USD |
| Payment Terms : | T/T |
| Supply Ability : | 600 unit/month |
| Delivery Time : | 25~35 working days |

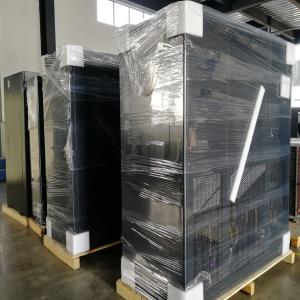

Precision air conditioner CCU equipment for server room air cooling system 220v/1p/50hz
Wide capacity range:
air cooled type(5.9kW~120kW),Water cooled type(5.9-120KW),chilled water cooled type(30kW~200kW).
Multiple cooling mode:
air cooled, water cooled, glycol cooled, chilled water cooled(with single/dual coil), air cooled & chilled water cooled, air cooled & free cooling, Freon pump free cooling.
Multiple air supplying modes:
cap tuyere mode, air guide mode, floorboard mode.
Multiple refrigerant types: R410A, R407C, R22.
Wide ambient air temperature rang:
standard range(-20℃~55℃),low temperature range(-30℃~55℃).
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
| SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| | Compressor | |||||||||
| Type | |||||||||
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Finned coll evaporator | |||||||||
| Frontal suface | M2 | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | ||||||||
| Type of fins | |||||||||
| FIn pitch | mm | ||||||||
| Fan section | |||||||||
| Type | |||||||||
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | |||||||||
| Eficiency | |||||||||
| Overall surface | M2 | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | |||||||||
| Humidifier | |||||||||
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | |||||||||
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | |||||||||
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
| EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
| SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
| Compressor | |||||||||
| Type | Scroll | ||||||||
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| I F hned coil evaporator | |||||||||
| Frontal surface | m2 | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
| Geometry | mm | 25X21.65 | |||||||
| Type of fins | Hydrophilic | ||||||||
| Fin pich | mm | 1.8 | |||||||
| Fan section | |||||||||
| Type | Centrigugal fan | ||||||||
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
| Air flter | |||||||||
| Eficiency | EU4 | ||||||||
| Overall surface | m2 | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
| Fire resistance dass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Material | PTC | ||||||||
| Humidifier | |||||||||
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | |||||||||
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
| Sound level | |||||||||
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
|
|
