| Brand Name : | HAIRF |
| Model Number : | HADR 0191 |
| Certification : | CE ROHS ISO CCC, ISO |
| Price : | 5000~8000USD |
| Payment Terms : | T/T |
| Supply Ability : | 502set/month |
| Delivery Time : | 26~30 working days |

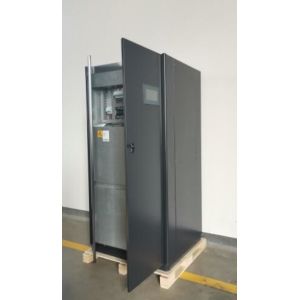

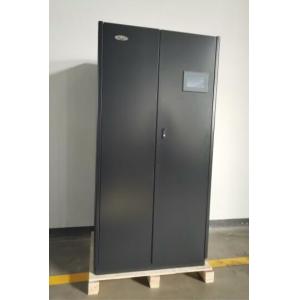

Precision air conditioning unit for computer room air cooling system CCU unit with scroll compressor
All you need in one place, delivered by highly experienced air conditioning experts
Precise temperature control to safeguard sensitive equipment
Compact, space-saving units
Low energy consumption
Optimized for environmentally friendly, low GWP refrigerants
Reduced applied costs, short payback times and easy service
Dedicated customer service around the world
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
| SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| | Compressor | |||||||||
| Type | |||||||||
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Finned coll evaporator | |||||||||
| Frontal suface | M2 | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | ||||||||
| Type of fins | |||||||||
| FIn pitch | mm | ||||||||
| Fan section | |||||||||
| Type | |||||||||
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | |||||||||
| Eficiency | |||||||||
| Overall surface | M2 | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | |||||||||
| Humidifier | |||||||||
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | |||||||||
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | |||||||||
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
| EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
| SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
| Compressor | |||||||||
| Type | Scroll | ||||||||
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| I F hned coil evaporator | |||||||||
| Frontal surface | m2 | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
| Geometry | mm | 25X21.65 | |||||||
| Type of fins | Hydrophilic | ||||||||
| Fin pich | mm | 1.8 | |||||||
| Fan section | |||||||||
| Type | Centrigugal fan | ||||||||
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
| Air flter | |||||||||
| Eficiency | EU4 | ||||||||
| Overall surface | m2 | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
| Fire resistance dass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Material | PTC | ||||||||
| Humidifier | |||||||||
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | |||||||||
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
| Sound level | |||||||||
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
|
|
