| Brand Name : | HAIRF |
| Model Number : | HADR 0452 |
| Certification : | CE 3C RoHS ISO |
| Price : | $3236-18000/set |
| Payment Terms : | T/T |
| Supply Ability : | 500set/month |
| Delivery Time : | 30-35days |

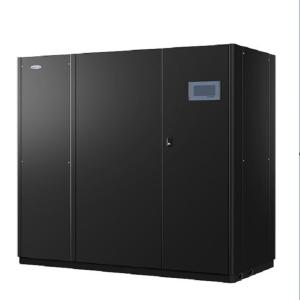

Split type precision air conditioner floor mounted type HVAC with outdoor condenser fan
Datacenter precision air cooling unit HAIRF precision air conditioner split type HVAC unit
50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 1022 | |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 102 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 24200 |
| EER | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 | |
| SHR | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 | |
| Compressor | |||||||||
| Type | Scroll | ||||||||
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 22.4 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| I F hned coil evaporator | |||||||||
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 2.8 |
| Geometry | mm | 25X21.65 | |||||||
| Type of fins | Hydrophilic | ||||||||
| Fin pich | mm | 1.8 | |||||||
| Fan section | |||||||||
| Type | Centrigugal fan | ||||||||
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 16.5 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 6300 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 400 |
| Air flter | |||||||||
| Eficiency | EU4 | ||||||||
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 13.5 |
| Fire resistance dass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 24 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Material | PTC | ||||||||
| Humidifier | |||||||||
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | |||||||||
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 2500 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 1015 |
| Sound level | |||||||||
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 66 |
Hairf, with more than 30 years’ R&D and manufacturing experience in server room equipment field, depending on world-class labs, inspection and production equipment, not only can provide specialized products to meet the exact requirement of user’s job site, but also provide a perfect total solution for server room. Now our product range include precision air conditioner, UPS and data center solution.
Hairf engineers, international sales and service team, are distributed all around the world in Mexico, Russia, Pakistan, Algeria, Indonesia, China, Philippines, Singapore, Kazakhstan, to ensure we can provide 24 hours service to more than fifty countries, which fully meet the user’s pre-sale technical support, equipment installation, equipment operation &maintenance, and spare parts supply etc.
|
|
