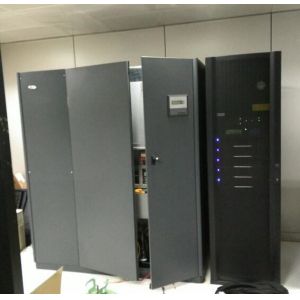

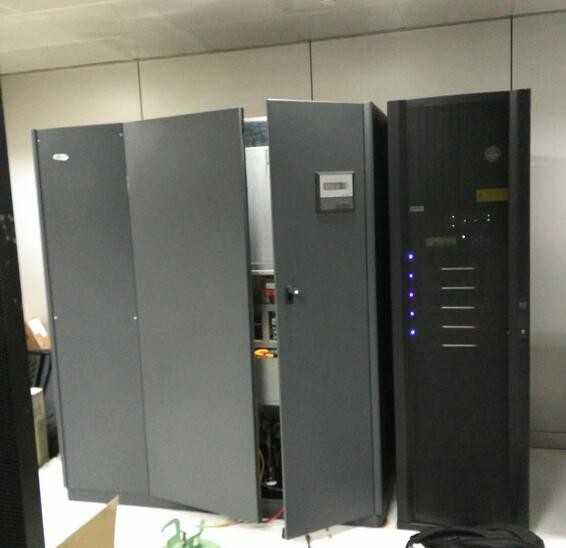

IT Racks Precision Close Control Unit With EC Fan Expansion Valve

Precision Close Control Unit PAC Equipment For IT Racks Air Cooling With EC Fan Expansion Valve

Intelligent control Highly intelligent microprocessor control system, reliable operation, easy to use and maintain, strong anti-interference ability, can keep the unit in the best operating state; With various protection functions, it can also achieve unit joint control, and can be connected to a common open protocol to easily achieve floor control.

Precision close control unit PAC equipment for IT racks air cooling with EC fan expansion valve

HAIRF precision air conditioner floor mounted CCU with high cooling capacity 380v/3ph/50hz

1. High density of inside server equipment

Model:HADC/HAUC		0061	0081	0101	0111	0131	0161	0191	0201
Cooling capacity(1)	kw	5.9	7.7	9.3	10.6	12.6	15.6	18.2	20.5
Air flow	m³/h	1720	2150	2850	3200	3530	4800	5200	5700
EER		3.6	3.65	3.55	3.65	3.6	3.65.	3.65	3.66
SHR		0.95	0.93	0.95	0. 95	0.93	0.96	0.93	0.93
| Compressor
Type
Capacity	kw	1.5	1.9	2.2	2.3	3	3.6	4.3	5.3
Quantity	nr	1	1	1		1	1	1	1
Finned coll evaporator
Frontal suface	M2	0.29	0.29	0.47	0.47	0.47	0.65	0.65	0.65
Geometry	mm
Type of fins
FIn pitch	mm
Fan section
Type
Quantity	nr	1	1	2	2	2	2	2	2
Absorbed current	A	1.2	1.6	3.2	3.2	3.2	3.8	3.8	3.8
Absorbed power	W	165	282	500	563	563	668	668	850
AESP Max Speed(2)	Pe	180	180	180	250	250	250	250	250
Air flter
Eficiency
Overall surface	M2	2.2	2.2	3.6	3.6	3.6	5	5	5
Fire reslstance dlass
I Electrical heaters
Total heating capaclty	kw	2	2	2.5	2.5	2.5	5	5	5
Quantity	nr	1	1	1	1	1	2	2	2
Material
Humidifier
Capacty	Kg/h	5-8	5-8	5-8	5-8	5-8	5-8	5-8	5-8
Absorbed power	kw	2.25	2.25	2.25	2.25	2.25	2.25	2.25	2.25
Dimension&Weight
Height	mm	1875	1875	1875	1875	1875	1875	1875	1875
Length	mm	600	600	900	900	900	1200	1200	1200
Depth	mm	449	449	49	449	449	449	449	449
Welght	kg	150	157	195	210	230	245	255	270
Sound level
Sound pressure lel(3)	db(A)	46	48	48	49	51	52	53	52

50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room

Model : HADR/HAUR		0201	0251	0261	0271	0301	0351	0401	1022
Cooling capaciy(1)	kw	21.2	23.2	26.8	27.3	31.5	35.6	41.2	102
Air flow	m³/h	6530	7050	7280	8500	9000	10000	11000	24200
EER		3.72	3.6	3.6	3.75	3.71	3.71	3.71	3.68
SHR		0.98	0.98	0.92	0.98	0.99	0.98	0.97	0.95
Compressor
Type		Scroll
Capacily	kw	5.2	5.5	5.9	6.2	7.4	8.3	9.3	22.4
Quantity	nr	1	1	1	1	1	1	1	2
I F hned coil evaporator
Frontal surface	m2	0.8	0.8	0.8	1.4	1.4	1.4	1.7	2.8
Geometry	mm	25X21.65
Type of fins		Hydrophilic
Fin pich	mm	1.8
Fan section
Type		Centrigugal fan
Quantity	nr	1	1	1	1	1	1	2	3
Absorbed curent	A	2.5	2.5	2.8	3.2	3.5	4.1	4.4	16.5
Absorbed power	W	1050	1100	1200	1300	1320	2000	2150	6300
AESP Max Speed(2)	Pe	360	360	360	380	380	355	355	400
Air flter
Eficiency		EU4
Overall surface	m2	5.8	5.8	5.8	6.5	6.5	6.5	7.8	13.5
Fire resistance dass
I Electrical heaters
Total heating capacity	kw	5	5	5	5	5	8	8	24
Quanlily	nr	2	2	2	2	2	2	2	4
Material		PTC
Humidifier
Capacily	Kg/h	8-13	8-13	8-13	8-13	8-13	8-13	8-13	8-13
Absorbed power	kw	6	6	6	6	6	6	6	6
Dimension&Weight
Height	mm	1998	1998	1998	1998	1998	1998	1998	1998
Length	mm	1000	1000	1000	1000	1000	1000	1750	2500
Depth	mm	795	795	795	795	795	795	795	795
Weight	kg	375	385	393	450	490	590	595	1015
Sound level
Sound pressure level(3)	db(A)	52	53	53	55	56.5	58	60	66

Hefei Hairf Network Power Co.,Ltd.
