| Brand Name : | HAIRF |
| Model Number : | H0101 |
| Certification : | CE 3CE RoHS |
| Price : | $3540/sets |
| Payment Terms : | T/T |
| Supply Ability : | 1000set/month |
| Delivery Time : | 35-45days |

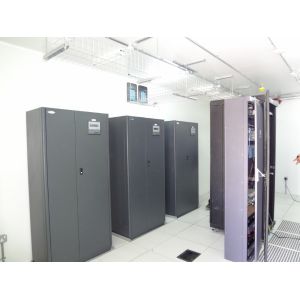

Water cooler Precision air conditioner air handling unit for data center black
Application/Usage
1. High quality control component.
2. Efficient evaporator made from advanced technology and with larger heat exchange area.
3. Famous brand quality expansion valve.
4. Internationally advanced electrode steam humidification system.
5. Unique frame design guarantees the cabinet safety under any transport condition and operating environment.
6. G4 level air filter to guarantee the server room air purity.
7. Copeland hermetic scroll compressor.
8. Standard configuration with speed adjustable centrifugal fan. EC fan is optional.
9. Highly efficient PTC electrical heater.
10. Anti-corrosion alloy condenser.
| Model:HADC/HAUC | 0061 | 0081 | 0101 | 0111 | 0131 | 0161 | 0191 | 0201 | |
| Cooling capacity(1) | kw | 5.9 | 7.7 | 9.3 | 10.6 | 12.6 | 15.6 | 18.2 | 20.5 |
| Air flow | m³/h | 1720 | 2150 | 2850 | 3200 | 3530 | 4800 | 5200 | 5700 |
| EER | 3.6 | 3.65 | 3.55 | 3.65 | 3.6 | 3.65. | 3.65 | 3.66 | |
| SHR | 0.95 | 0.93 | 0.95 | 0. 95 | 0.93 | 0.96 | 0.93 | 0.93 | |
| | Compressor | |||||||||
| Type | |||||||||
| Capacity | kw | 1.5 | 1.9 | 2.2 | 2.3 | 3 | 3.6 | 4.3 | 5.3 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Finned coll evaporator | |||||||||
| Frontal suface | ㎡ | 0.29 | 0.29 | 0.47 | 0.47 | 0.47 | 0.65 | 0.65 | 0.65 |
| Geometry | mm | ||||||||
| Type of fins | |||||||||
| FIn pitch | mm | ||||||||
| Fan section | |||||||||
| Type | |||||||||
| Quantity | nr | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Absorbed current | A | 1.2 | 1.6 | 3.2 | 3.2 | 3.2 | 3.8 | 3.8 | 3.8 |
| Absorbed power | W | 165 | 282 | 500 | 563 | 563 | 668 | 668 | 850 |
| AESP Max Speed(2) | Pe | 180 | 180 | 180 | 250 | 250 | 250 | 250 | 250 |
| Air flter | |||||||||
| Eficiency | |||||||||
| Overall surface | ㎡ | 2.2 | 2.2 | 3.6 | 3.6 | 3.6 | 5 | 5 | 5 |
| Fire reslstance dlass | |||||||||
| I Electrical heaters | |||||||||
| Total heating capaclty | kw | 2 | 2 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Material | |||||||||
| Humidifier | |||||||||
| Capacty | Kg/h | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Absorbed power | kw | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Dimension&Weight | |||||||||
| Height | mm | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 | 1875 |
| Length | mm | 600 | 600 | 900 | 900 | 900 | 1200 | 1200 | 1200 |
| Depth | mm | 449 | 449 | 49 | 449 | 449 | 449 | 449 | 449 |
| Welght | kg | 150 | 157 | 195 | 210 | 230 | 245 | 255 | 270 |
| Sound level | |||||||||
| Sound pressure lel(3) | db(A) | 46 | 48 | 48 | 49 | 51 | 52 | 53 | 52 |
Filter
Air filter which is EU4 standard which is metallic bracket , filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Indoor blower fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
The high-performance unit employ energy-saving EC fan controlled by 0-10V signal,DC driven and stepless speed regulation,which is more excellent than traditional fan in energy-saving filed.
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of
manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff &
Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
(1) Displacement temperature 24C,relative humidity 50%:
ambient temperature 40 C
(2) For higher External Static Pressure (ESP), please contact Hairf.
(3) Noise is measured in free field 2m apart from the unit.
|
|
